pH calculator » acid base titration curves and equilibria

Go for it! Important chemistry should be difficult for being clever, not for being tedious.

Uncle Al

BATE pH calculator is able to calculate pH of solution containing weak acid and base of up to four dissociation steps. While that's main task, program's applications doesn't end here.

Known pH allows calculation of concentrations of all ions present in the solution in the state of acid base equilibrium. These concentrations are often very important - for example in solution of carbonic acid concentration of CO32- ions can determine whether CaCO3 will precipitate:

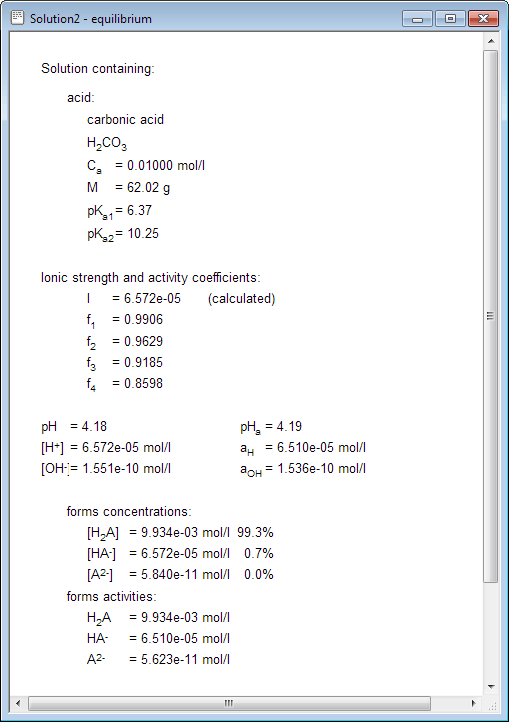

BATE pH calculator - acid base equilibrium view - calculated pH and concentrations of all ions in carbonic acid solution

As you see, in 0.01M solution of carbonic acid CO32- activity is pretty small - 5.6×10-11 - assuming pKso=8.4 it is unlikely CaCO3 will ever precipitate (unless the pH of solution will be changed by some other means).

Program displays all kinds of information available - starting with used dissociation constants values, through ionic force and activity coefficients (if they were forced or calculated), ending with all equilibrium concentrations (expressed both as absolute numbers and percentages) of all ions created by dissociating acid and base. All these values are presented for your convenience and can be used to understand what happens in the solution or in other calculations. For example thanks to displayed percentages of total concentration it is obvious that in 0.01M solution of carbonic acid in equilibrium undissociated form is dominating. As activity coefficients are charge dependent (see lecture on ionic strength and activity coefficients for more detailed information) displayed values can be used to calculate activities of other ions present in the solution.

All visible information can be printed. Above example contains only information about acid present in the solution, but if you create solution containing both acid and base - all acid base equilibrium concentrations will be displayed:

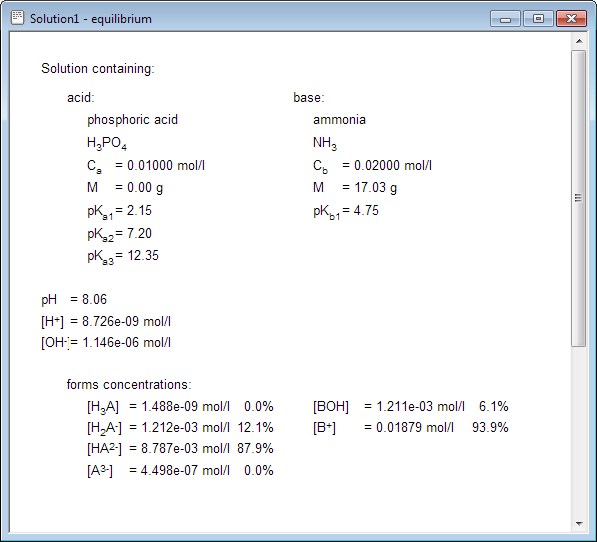

BATE pH calculator - acid base equilibrium view - calculated pH and concentrations of all ions

pH calculator is also capable of calculating acid base titration curves. Acid base titration curves are often used as examples of sigmoidal titration curves in general. However, often when planning experiment of weak acid or base determination, it is worth to look for the acid base titration curve to choose indicator, or just to check whether pH change near the end point is large enough for reliable results.

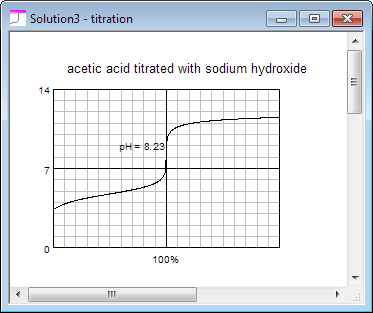

Thus in almost no time you can check and compare titration curve for acetic acid:

BATE pH calculator - acid base titration curve - acetic acid titration curve

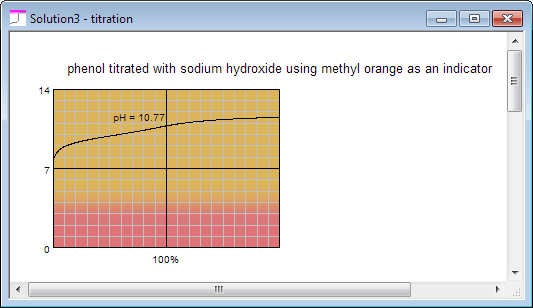

and for phenol (note colors of the indicator displayed on the curve):

BATE pH calculator - acid base titration curve - phenol titration curve

With obvious conclusion that the latter can't be determined with acid base titration.
